Overview Fibre LNB
LNB
Gateway termination unit
(GTU)
Fiber-Kit: LNB-Set
Optical cable
Splitter
Cabel connector
Attenuator
Optical power meter
|
Optical
Equipment
|
Connector |
|
001246
|
IFKUP |

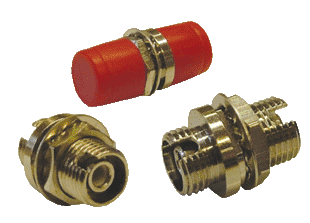

Optical cabel connector, 2x FC/PC
Cable splice |
 |
|
Calbe Splitter (FC/PC socket) |
|
001242 |
IFV2 |
Optical cable splitter, 2-way, 1
input & 2 outputs,
Signal line loss per output: approximately 3,8dB |
 |
|
001257 |
IFV3 |
Optical cable splitter, 3-way, 1
input & 3 outputs,
Signal line loss per output: approximately 4,8dB |
|
001253 |
IFV4 |
Optical cable splitter, 4-way, 1
input & 4 outputs,
Signal line loss per output: approximately 6,8dB |
|
001261 |
IFV5 |
Optical cable splitter, 8-way, 1
input & 8 outputs,
Signal line loss per output: approximately 10,6dB |
Optical attenuator
|
001240
|
IFDB5 |
Optical attenuator, reduces the
optical power level by 5dB |
 |
|
001245
|
IFDB10 |
Optical attenuator, reduces the
optical power level by 10dB |
|
|
001241
|
IFDB15 |
Optical attenuator, reduces the
optical power level by 15dB |
|
|
001259
|
IFDB20 |
Optical attenuator, reduces the
optical power level by 20dB |
|
|
