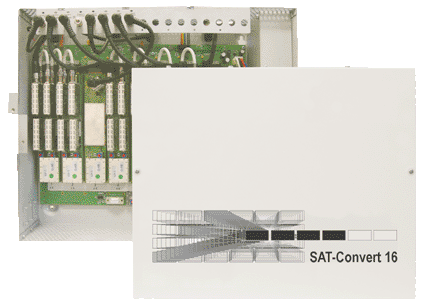

Convertion of up to 16 Transponder via 8 twin-modules with the SAT-Convert 16. Input signals from different satellites are possible.

The system is free programmable in all broadband networks 950-2150MHz.

Technische Daten SAT-Convert 16

• Programming: 3 keys / LCD display

• Anti-Collision device hutz für min. Abstand 40MHz im Ausgang

• 8 module slots for twin-, single- or filter-modules)

• Operating voltage 180-265V, 50-60Hz

• Power consumption 65W max.

• Ambient temperature 0-50°C max.

• Output frequency range 950-2150MHz (40MHz steps)

• Output level 103dB/µV / 75 Ohm

• Level adjuster 0...-10dB

• Ripple max. ±3dB

• Input sockets 4x F-socket (expandable to 8)

• SAT-combiner field 950-2150MHz 1x MSV24, 2x In, 2x Out, 2x loop through

• Reomote Power supply: Modules & MSV24 max. 1,2A/12V

• Programming interface RS 232

• Dimension / Weight W440 x H365 x D170mm / 7 kg

• Upgrade option FM amplifier UVSK42P

109016

SAT-Convert 16

Base unit for 8 slots, SAT-IF-convertion 950-2150MHZ 4 inputs, 1 output

219000

UVSK-42A

FM-amplifier 42dB, 6 wave traps

Modules  - transponder selective conversion

Technical data SZF-T / SZF-S

• Input frequency 950-2150MHz

• Adjustment 1MHz steps

• Input level - range of adjustment 55-75dB / 75 Ohm

• SAT-IF-bandwidth 36MHz

• Output frequency range 950-2150MHz in 40 MHz steps

• Level adjuster / per channel 0...-20dB

• Ripple max. ±3dB

• In-/ Output (loop through) F-sockets

• Loop through possiblity / channel 1 x 950-2150MHz

• Remote powering / LED Indicator 1 x per module 12V / 300mA/ jumper

SAT-IF-bandpass filter

The german main Programms could be feeded  in blocks into the IF-network

Technical data SZF-BP1

• Input sockets 1 x F-socket

• Range of bandwidth 1100-1690MHz

• Gain 13dB#

• Level adjuster 0....-20dB

• Remote powering per filter input 12V/ 300mA

• Ambient temperature 0-50°C

109017

SZF-T

SAT-IF-Twin module, free adjustable, Input 950-2150MHz, Output 950-2150MHz

190020

SZF-S

SAT-IF-Single module, free adjustable, Input 950-2150MHz, Output 950-2150MHz

190018

SZF-BP1

Bandpass filter 1100-1690MHz, 13dB Gain, remote powering
